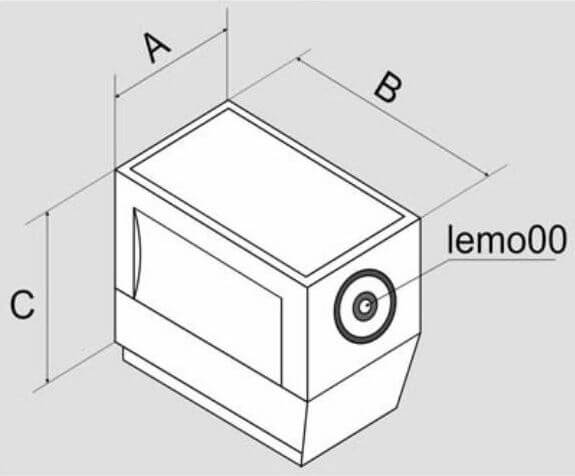

Transducer dimensions:
| Element dia. | A | B | C | ||||
| mm | in | mm | in | mm | in | mm | in |
| 8x9 | .315x.350 | 16.5 | .65 | 28.5 | 1.12 | 22.0 | 2.0 |
| 14x14 | .550x.550 | 21.2 | .83 | 37.5 | 1.47 | 30.7 | 1.2 |
| 22x22 | .860x.860 | 31.6 | 1.24 | 56.0 | 2.2 | 44.0 | 1.73 |
General specifications:
| Catalog number | Frequency, MHz | Refracted angle,o | Element size, | Type of case | Connector type | Connector position | |
| mm | in | ||||||
| TAB1-45-8x9 | 1.0 | 45 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB1-60-8x9 | 1.0 | 60 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB1-70-8x9 | 1.0 | 70 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB2-45-8x9 | 2.0 | 45 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB2-60-8x9 | 2.0 | 60 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB2-70-8x9 | 2.0 | 70 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB4-45-8x9 | 4.0 | 45 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB4-60-8x9 | 4.0 | 60 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB4-70-8x9 | 4.0 | 70 | 8x9 | .315x.350 | Plated brass | Lemo00 | Side |
| TAB2-45-14x14 | 2.0 | 45 | 14x14 | .550x.550 | Plated brass | Lemo00 | Side |
| TAB2-60-14x14 | 2.0 | 60 | 14x14 | .550x.550 | Plated brass | Lemo00 | Side |
| TAB2-70-14x14 | 2.0 | 70 | 14x14 | .550x.550 | Plated brass | Lemo00 | Side |
| TAB4-45-14x14 | 4.0 | 45 | 14x14 | .550x.550 | Plated brass | Lemo00 | Side |
| TAB4-60-14x14 | 4.0 | 60 | 14x14 | .550x.550 | Plated brass | Lemo00 | Side |
| TAB4-70-14x14 | 4.0 | 70 | 14x14 | .550x.550 | Plated brass | Lemo00 | Side |
| TAB2-45-20x22 | 2.0 | 45 | 20x22 | .860x.860 | Plated brass | Lemo1S | Side |
| TAB2-60-20x22 | 2.0 | 60 | 20x22 | .860x.860 | Plated brass | Lemo1S | Side |
| TAB2-70-20x22 | 2.0 | 70 | 20x22 | .860x.860 | Plated brass | Lemo1S | Side |
| TAB4-45-20x22 | 4.0 | 45 | 20x22 | .860x.860 | Plated brass | Lemo1S | Side |
| TAB4-60-20x22 | 4.0 | 60 | 20x22 | .860x.860 | Plated brass | Lemo1S | Side |
| TAB4-70-20x22 | 4.0 | 70 | 20x22 | .860x.860 | Plated brass | Lemo1S | Side |
